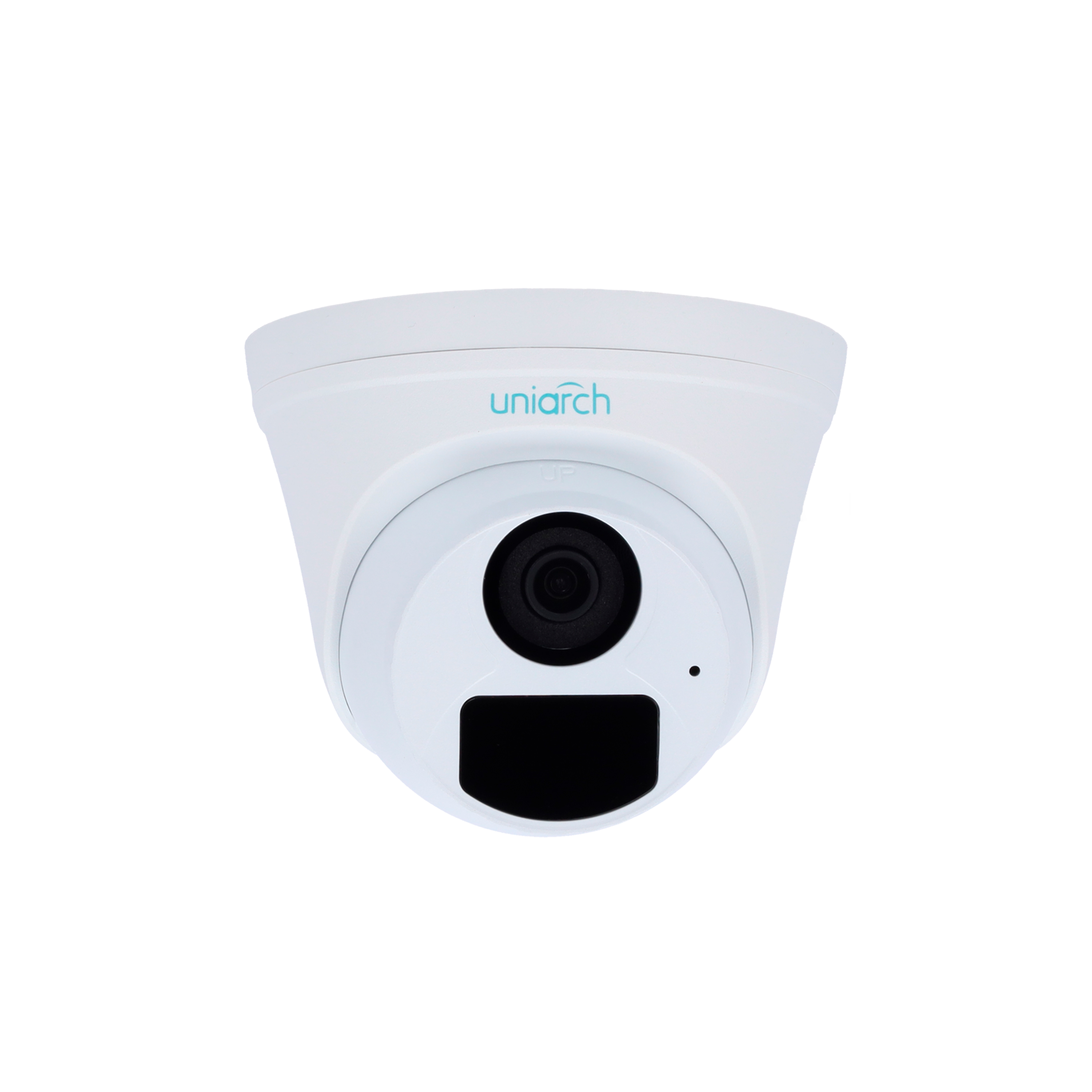

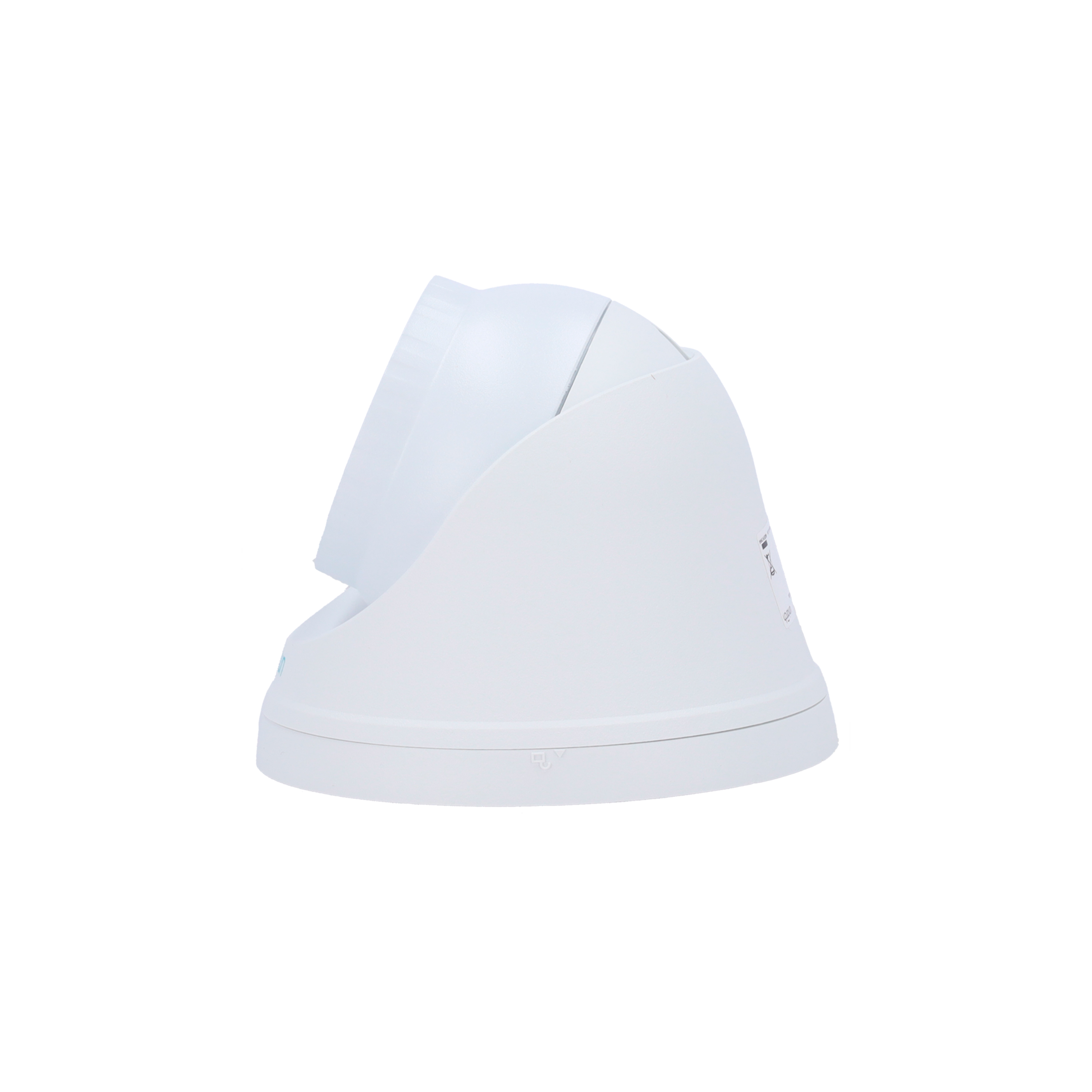

IP CAM UNIARCH IPC-T122-APF28-ECO 2MP

Sensor

1/2.9", 2.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.02Lux (F2.1, AGC ON)

0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 80°

Rotate: 0° ~ 360°

WDR

DWDR

S/N

>52dB

Lens Type

2.8mm@F2.1

Iris

Fixed

Angle of View (H)

101.1°

Angle of View (V)

55.0°

Angle of View (O)

111.0°

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

45.0(147.6ft)

18.0(59.1ft)

9.0(29.5ft)

4.5(14.8ft)

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video Compression

Ultra 265, H.265, H.264

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps;

Sub Stream: D1 (720*576), Max 25fps; 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps;

Video Bit Rate

128 Kbps~6 Mbps

U-code

Support

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Video stream

Dual streams

White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Basic Detection

Motion detection, Audio detection

General Function

Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Edge Storage

Micro SD, up to 128 GB

Network Storage

ANR

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

N/A

Suppression

Support

Sampling Rate

8KHZ

Protocols

IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS , RTMP

Compatible Integration

ONVIF (Profile S, Profile T, Profile G), API

User/Host

Up to 32 users. 2 user levels: administrator and common user

Client

Uniarch Client

Uniarch APP

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Audio I/O

N/A

Alarm I/O

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

CB (IEC 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 3.2W

Dimensions (Ø x H)

Ø118 x 97mm (Ø4.6” x 3.8”)

Weight

0.27kg (0.60lb)

Working Environment

-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)

Storage Environment

-30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Reset Button

N/A
