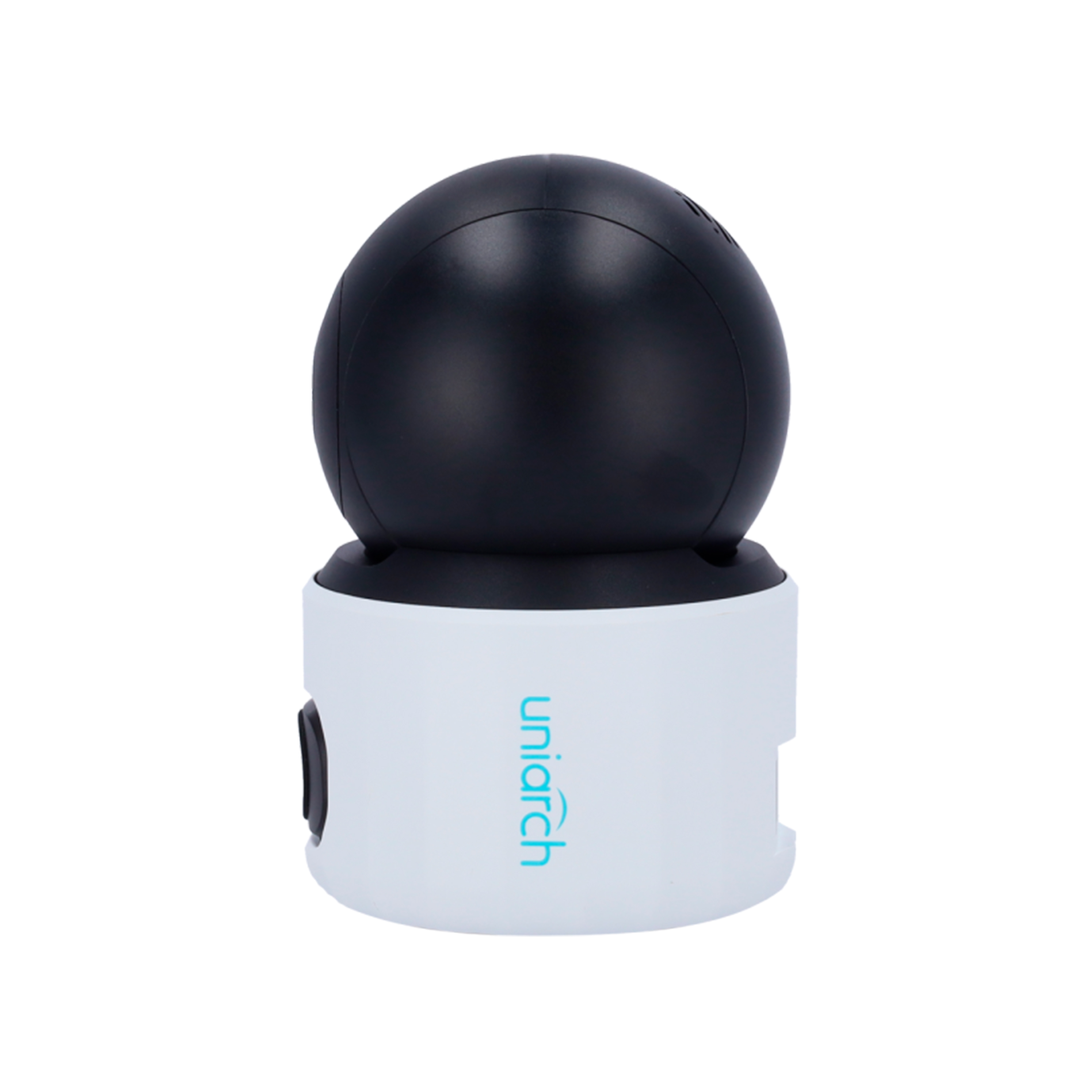

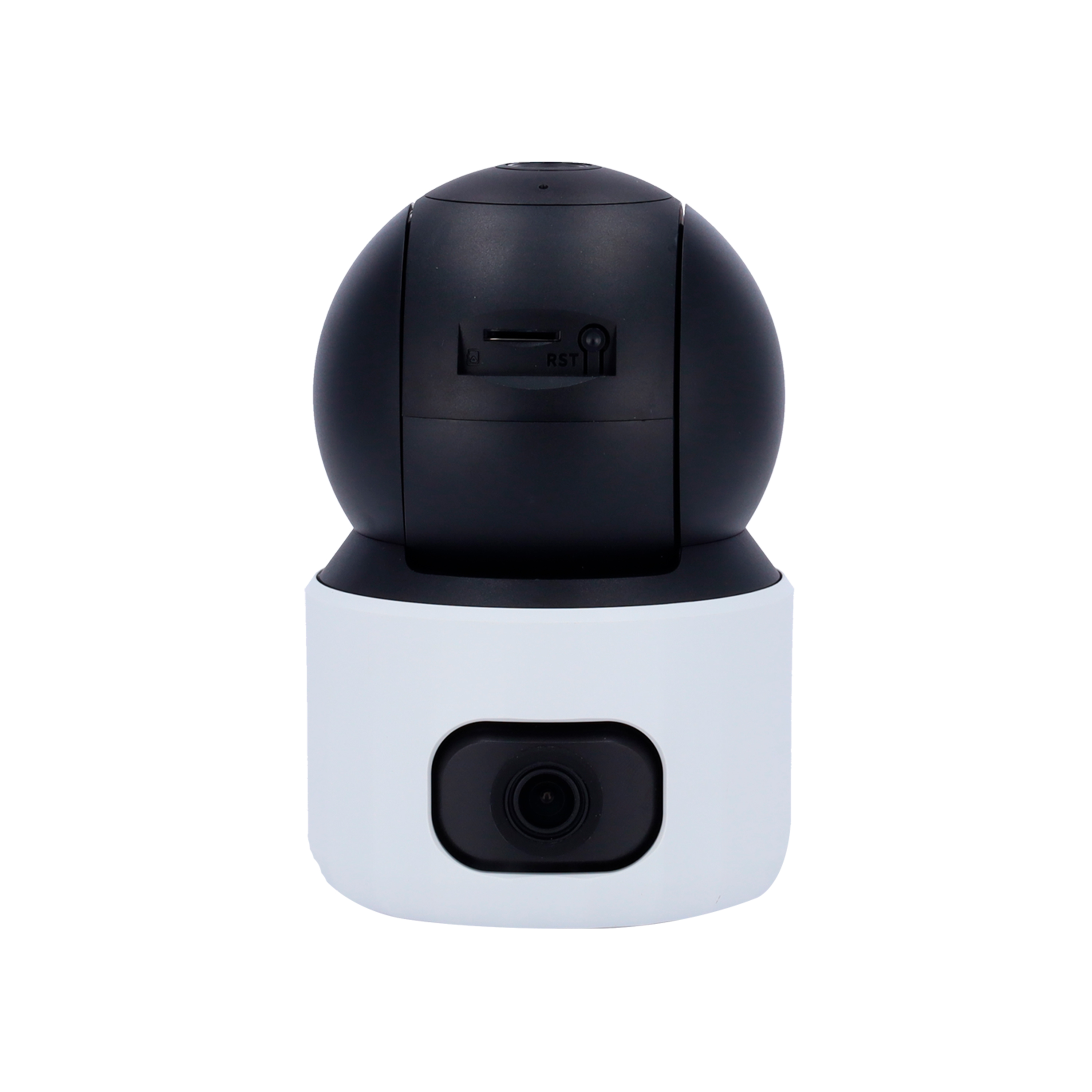

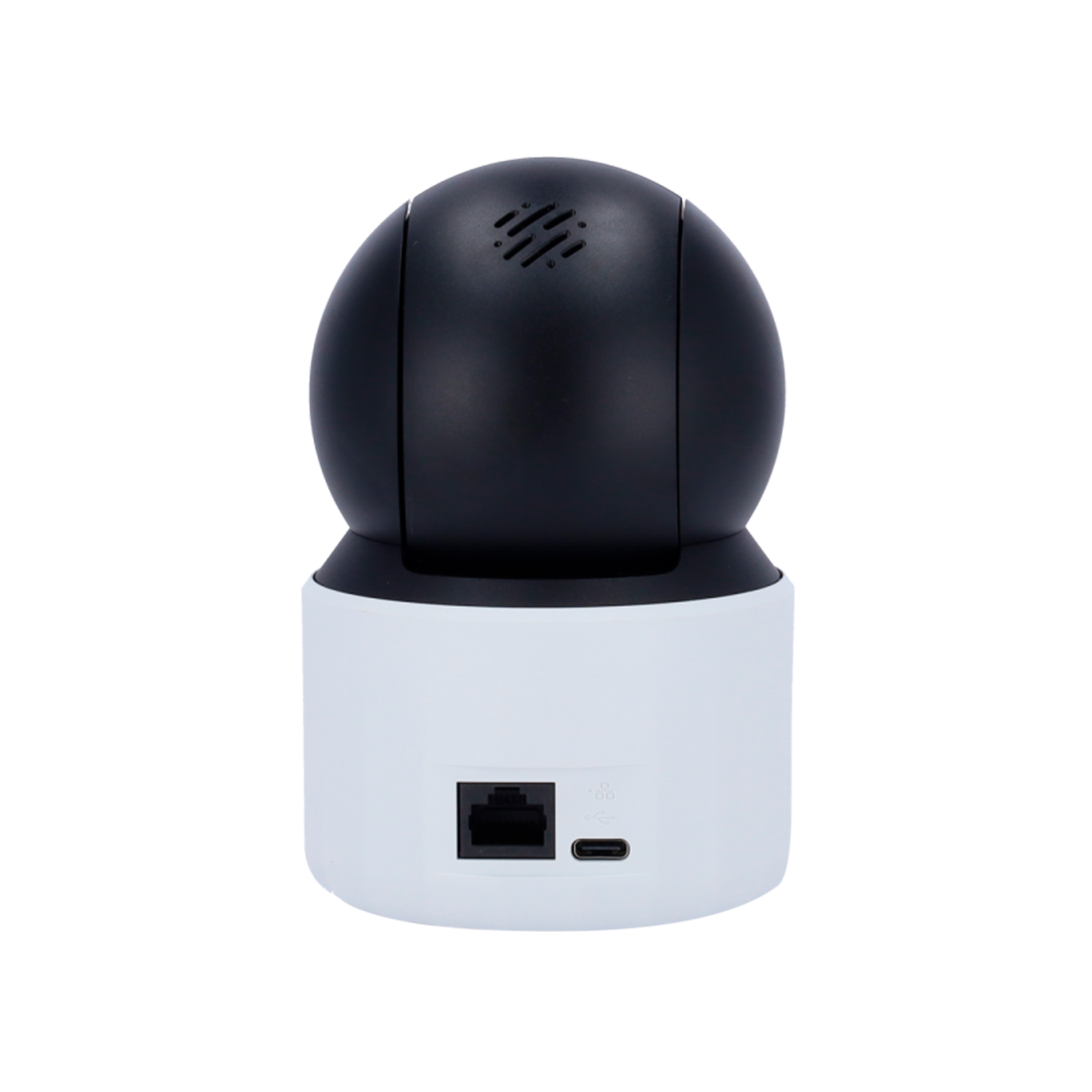

SMART CAM Uho-S3S-M33D

Uho-S3S-M33D

Camera

Panorama

Detail

Sensor

1/2.8" progressive scan, 3.0 megapixel, CMOS

1/2.8" progressive scan, 3.0 megapixel, CMOS

Min. Illumination

Colour:0.01 lux (F2.0,AGC ON)

0 lux with IR

Colour:0.01 lux (F2.0,AGC ON)

0 lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, shutter time: 1s ~ 1/100000s

WDR

DWDR

S/N

>52dB

Lens

Lens type

4.0mm@F2.0

4.0mm@F2.0

Digital Zoom

N/A

4X

Iris

Fixed

Fixed

Field of View (H)

91.5°

91.5°

Field of View (V)

48.1°

48.1°

Field of View (D)

96.3°

96.3°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

4.0 mm

73.5 (241.0ft)

29.4 (96.4ft)

14.7 (48.2ft)

7.3(24.1ft)

4.0 mm

73.5 (241.0ft)

29.4 (96.4ft)

14.7 (48.2ft)

7.3(24.1ft)

Illuminator

IR Range

Up to 10m (33ft)

Up to 10m (33ft)

Warm Light Range

N/A

Up to 10m (33ft)

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264

Frame Rate

Main Stream: 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; 720P (1280*720), Max 15fps;

Sub Stream: 640*360,Max 15fps; 2CIF(704*288), Max 15fps; CIF(352*288), Max 15fps;

Main Stream: 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; 720P (1280*720), Max 15fps;

Sub Stream: 640*360,Max 15fps; 2CIF(704*288), Max 15fps; CIF(352*288), Max 15fps;

Video Bit Rate

128 Kbps~2048 Kbps

ROI

Up to 8 areas

Video Stream

Dual streams

OSD

Up to 4 OSDs

Privacy Mask

Support(Only NVR)


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/Flip Horizontal/180°

HLC

N/A

BLC

N/A

Defog

Digital Defog

Events

Basic Detection

Motion detection, Ultra motion detection(pedestrian/motor vehicle/pet), Loud Sound Detection, Crying detection, Tampering alarm

Auto tracking

N/A

Support

General Function

IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression

G.711U,G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8 kHz

Storage

Edge Storage

Micro SD, up to 512 GB

Network Storage

ANR

Network

Wi-Fi

2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna

Protocols

IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP

Compatible Integration

API

Client

Uniarch Client

Uniarch APP

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Wi-Fi

Wireless Standards

IEEE802.11b/g/n/ax

Frequency Range

2.4GHz~2.4835GHz

Channel Bandwidth

20/40 MHz Support

Modulation Mode

802.11b: CCK

802.11g/n: OFDM

802.11ax: OFDMA

Security

64/128-bitWEP,WPA-PSK/WPA2-PSK

Transmit Power

802.11b: 17±1.5dBm @11Mbps

802.11g: 16±1.5dBm @ 54Mbps

802.11n: 16±1.5dBm @MCS7

802.11ax: 16±1.5dBm @MCS9

Receive Sensitivity

802.11b: -76dBm @11Mbps (Typical)

802.11g: -65dBm @54Mbps (Typical)

802.11n: -61dBm @MCS7,HT40(Typical)

802.11ax: -54dBm @MCS9,HE40(Typical)

Transmission Rate

802.11b: 11Mbps

802.11g: 54Mbps

802.11n: up to 150Mbps

802.11ax: up to 270Mbps

Pan & Tilt

Pan Range

N/A

0° ~ 355°

Pan Speed

N/A

17°/s ~ 50°/s

Preset speed: N/A

Preset speed: 50°/s

Tilt Range

0° ~ 15°

-15° ~ 90°

Tilt Speed

N/A

17°/s ~ 50°/s

Preset speed: N/A

Preset speed: 50°/s

Number of Presets

20

Interface

Built-in Mic

Support

Built-in Speaker

Support

Wi-Fi

Support

Network

1 * RJ45 10M/100M Base-TX Ethernet

Certifications

EMC

CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)

RF

FCC ID (FCC CFR 47 part15 C)

CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)

Safety

CE LVD (EN 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

General

Power

DC 5V/1.5A

USB type-C interface

Dimensions (Ø x H)

Φ80 x 127mm (Ø3.1” x 4.8”)

Weight

0.22kg(0.49lb)

Working Environment

-10℃~50℃(-14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing)

Storage Environment

-10℃~50℃(-14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing)

Surge Protection

N/A

Reset Button

Support

LED indicator

1, red/blue
