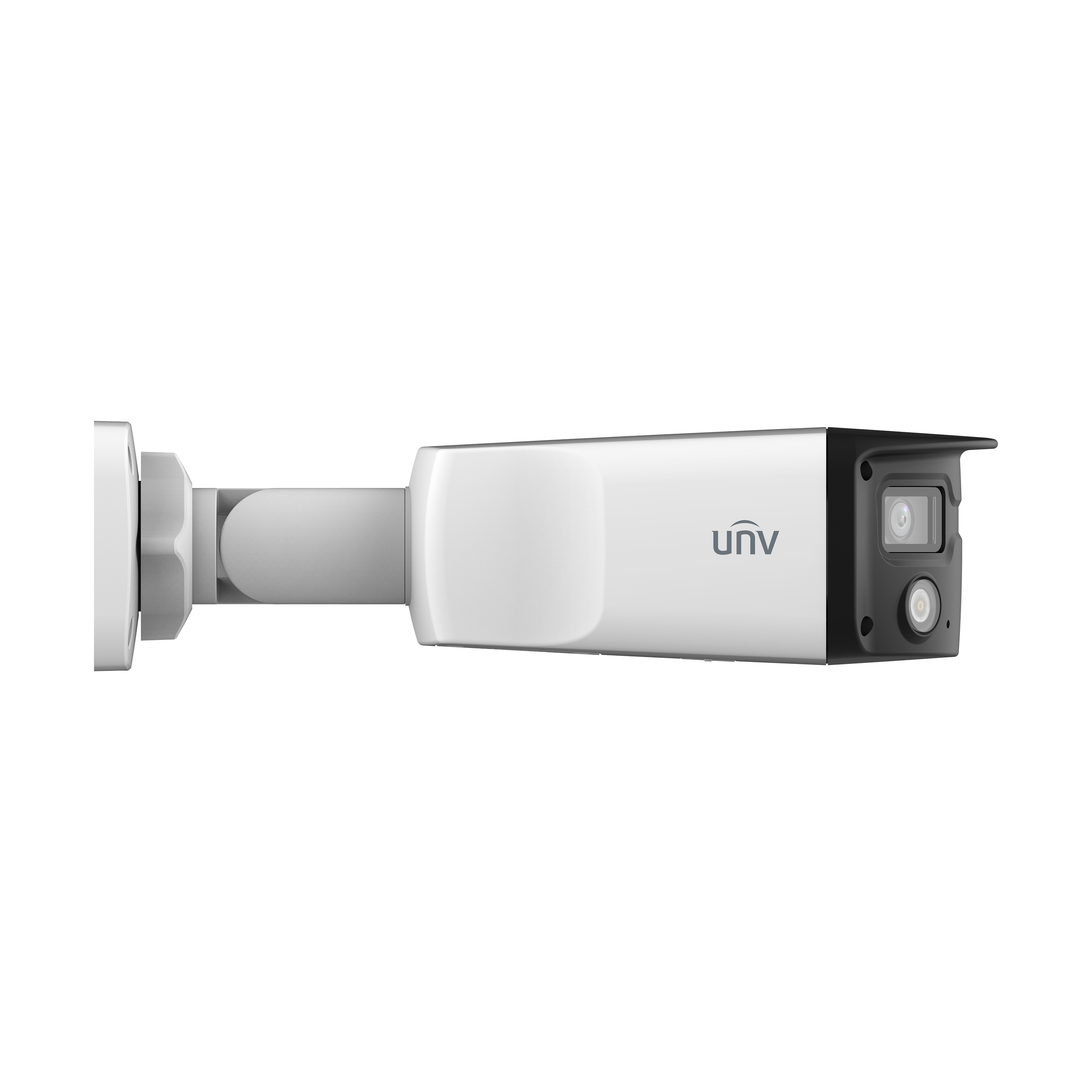

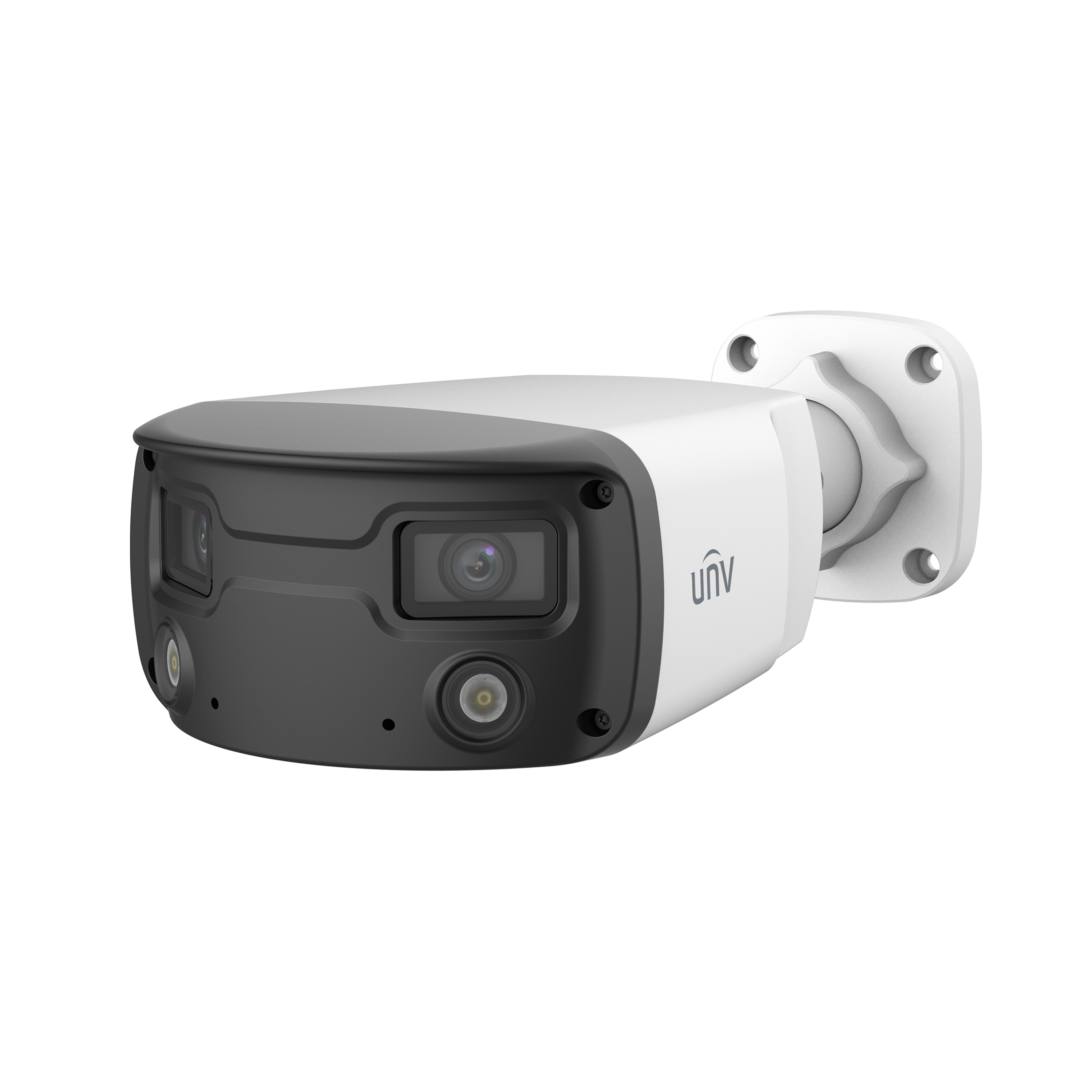

IP CAM UNV IPC2K24SE-ADF40KMC -WL-I0 4MP

Max Resolution

4 MP

Sensor

1/2.9" CMOS

Min. Illumination

Colour: 0.0005 lux (F1.0, AGC ON)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

S/N

>52 dB

WDR

DWDR

Focal Length

2 × 4.0 mm

Iris Type

Fixed

Iris

F1.0

Field of View (H)

160.0°±10°

Field of View (V)

43.2°

Field of View (D)

180.1°±10°

DORI Distance (Lens)

4.0mm

DORI Distance (Detect)

64.3m(210.9ft)

DORI Distance (Observe)

25.7m(84.3ft)

DORI Distance (Recognize)

12.9m(42.3ft)

DORI Distance (Identify)

6.4m21.0ft)

Supplemental Light

Warm light

Illumination Distance (Warm Light)

30 m (98.4 ft)

Light On/Off Control

Auto/Manual

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4MP (3840*1080), Max 25fps（Human Body Detection off）

Sub Stream: 1920*540, Max 25fps

Video Bit Rate

128 Kbps to 16 Mbps

U-code

Support

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

ROI

Support

Video Stream

Double streams

Smart Illumination

Support

White Balance

Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction

2D/3D DNR

Flip

N/A

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Smart Intrusion Prevention

N/A

Statistical Analysis

N/A

Basic Detection

Human Body Detection, Motion Detection, Tampering Alarm, Audio Detection

General Function

Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8 kHz

Edge Storage

Micro SD, up to 512 GB

Network Storage

ANR, NAS (NFS)

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T),

API, SDK

User/Host

Up to 32 users. 3 user levels: administrator, common user and operator

Security

Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client

UNV-Link, UNV-Link Pro, EZStation

Web Browser

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Audio I/O

1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]

Alarm I/O

1/1

Serial Port

N/A

Built-in Mic

Built-in two mics

Built-in Speaker

Support

WIFI

N/A

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

EMC

CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017)

CB (IEC 62368-1:2014)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013)

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption

Max 6.5W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

273× 130 × 76mm (10.7” × 5.1” × 3.0”) (L x W x H)

Weight

0.95kg (2.09lb)

Material

Metal

Working Environment

-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment

-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection

4 KV

Reset Button

Support
