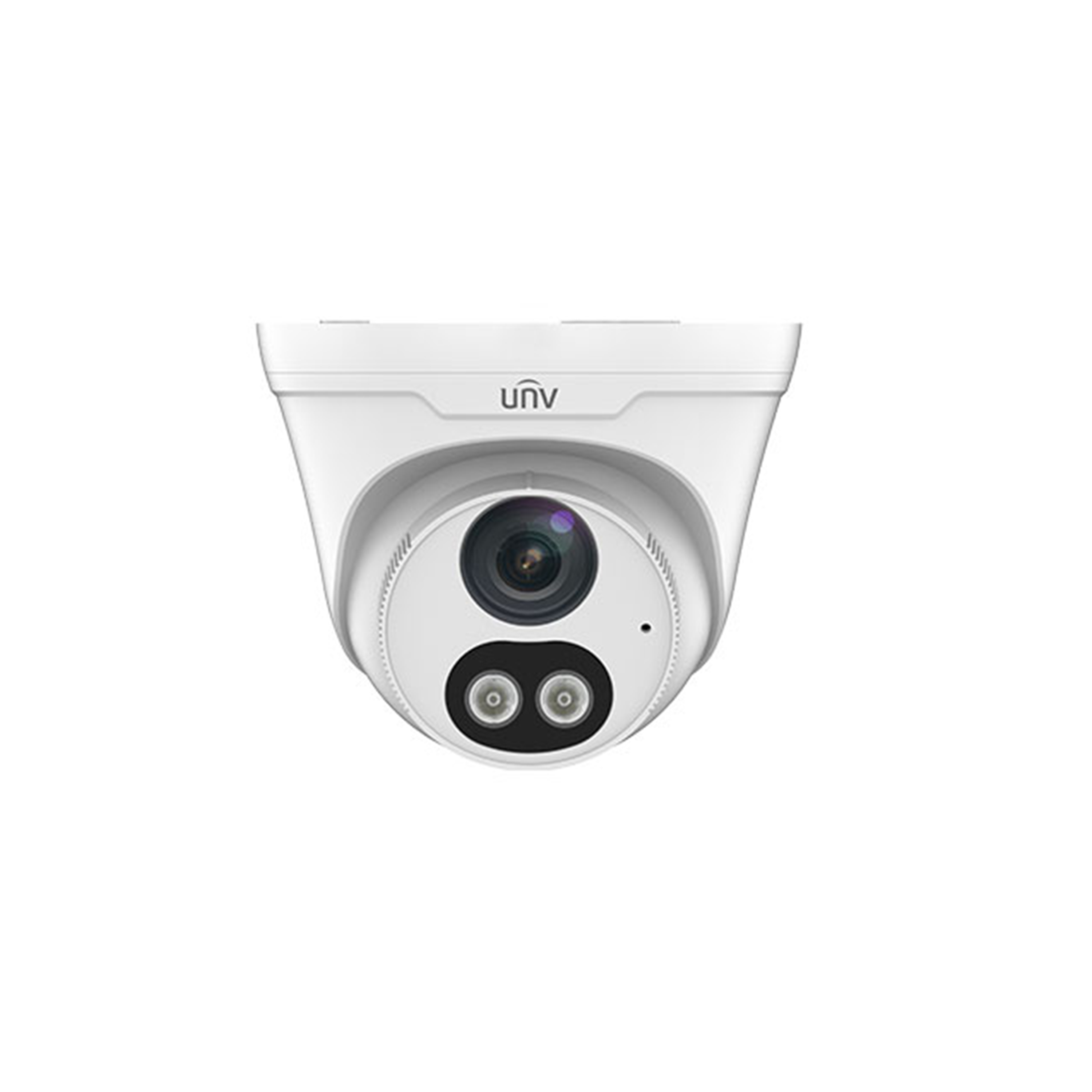

IP CAM UNIVIEW IPC3612LE-ADF28KCWL

Sensor

1/2.8", 2.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.003 lux ( F1.6, AGC ON)

0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° ~ 360°

 Tilt: 0° ~ 80°

Rotate: 0° ~ 360°

S/N

>52dB

WDR

120dB

Lens Type

2.8mm@F1.6

4.0mm @F1.6

Iris

Fixed

Field of View (H)

106.7°

87.5°

Field of View (V)

57.1°

46.3°

Field of View (D)

115.7°

92.4°

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

43.4

17.4

8.7

4.3

4.0

62.1

24.8

12.4

6.2

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~6 Mbps

U-code

Support

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video stream

Dual streams

White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported

Defog

Digital Defog

Basic Detection

Cross line, intrusion(based on human body detection),motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8KHZ

Edge Storage

Micro SD, up to 128 GB

Network Storage

ANR,NAS(NFS)

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Audio I/O

N/A

Alarm I/O

N/A

RS485

N/A

Built-in Mic

Support

Built-in Speaker

Support

WIFI

N/A

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

EMC

CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)

FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017)

CB (IEC 62368-1:2014)

UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 8.0W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Φ118 x 95mm (Φ4.6” x 3.8”)

Weight

0.30kg (0.66lb)

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Reset Button

N/A
